制粒設備
GHL高速混合制粒機
詳細說明
★GHL型高速混合制粒機是一種在一道工序內將不同的粉狀物料混合并制成顆粒的高效率設備，廣泛應用于制藥、食品、化工等行業。
★GHL high speed mixer granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry,etc.
設備特點 Features of equipment
★本機采用臥式圓筒或圓錐形結構，用戶可自由選擇。
★設備內表無死角，密閉狀態下工作，符合“GMP”要求。
★制粒時間短，高效節能。
★制成的顆粒質地均勻，流動性好，為壓片工序提供最理想的顆粒狀原料。
★較傳統工藝減少25%粘合劑，干燥時間縮短。
★每批僅干混2分鐘，造粒1～4分鐘，功效比傳統工藝提高4～5倍。
★整個操作具有嚴格的安全保護措施。
★主藥與輔料差異大時，仍能達到均勻結合，無分層現象。
★The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
★The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
★Short granulating time, high efficiency and energy saving
★The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet pressing procedure.
★Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
★Each batch needs 2 minutes to dry mixing and 1~4 minutes to granulating. Compared with traditional process, its efficiency can raise 4~5 times.
★Whole operation has strict safe protective measures.
★It can mix uniformly even when the gravity difference between main material and excipient is very big,without the phenomenon of delamination.
|
規格 Specification 項目 Item |
7/2.5 |
10 |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
600 |
800-1500 |
|
生產能力 Capacity (Kg/批batch) |
0.3-1 |
3 |
15 |
35 |
50 |
60 |
80 |
100 |
135 |
200 |
按用戶要求設計 By lient |
|
顆粒粒度(目) Granules size (Mesh) |
20-80 |
||||||||||
|
作業時間 Working time (min) |
5-7 |
||||||||||
|
容器容積 Container volume (L) |
7/2.5 |
10 |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
600 |
|
|
攪拌電機功率 Mixing power (Kw) |
0.75 |
2.2 |
4/5.5 |
6.5/8 |
6.5/8 |
11/14 |
11/14 |
13/16 |
18.5/22 |
22/28 |
|
|
切刀電機功率 Cutting power (Kw) |
0.75 |
1.1 |
1.3/1.8 |
2.4/3 |
2.4/3 |
4.5/5.5 |
4.5/5.5 |
4.5/5.5 |
6.5/8 |
9/11 |
|
|
攪拌轉速 Mixing speed (r/min) |
30-1000 |
30-600 |
200/400 |
200/400 |
180/270 |
180/270 |
180/270 |
140/220 |
106/155 |
80/120 |
|
|
切刀轉速 Cutting speed (r/min) |
300-3000 |
1500/3000 |
|||||||||
|
壓縮空氣壓力 Pressure of compressed air (Mpa) |
0.3-0.6 |
||||||||||
|
壓縮空氣耗量 Consumption of compressed air (m3/min) |
|
0.1 |
0.11 |
0.13 |
0.2 |
0.25 |
0.25 |
0.3 |
0.4 |
0.4 |
|
|
機器重量 Weight (Kg) |
150 |
300 |
400 |
800 |
900 |
1200 |
1500 |
1550 |
1650 |
1800 |
|
|

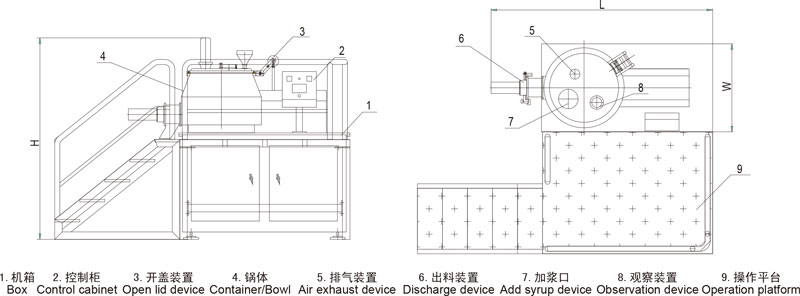

產品主要尺寸(長×寬×高mm） Overall dimension of machine (L×W×H) |
800× 450× 900 |
1250× 550× 1160 |
1730× 750× 1610 |
1950× 750× 1810 |
1950× 750× 1810 |
2210× 880× 2000 |
2210× 880× 2000 |
2310× 1050× 2000 |
2485× 1080× 2050 |
2585× 1400× 2100 |
|
