制粒設備
PGL-B噴霧干燥制粒機(一步機)
詳細說明
★噴霧干燥制粒機適用于中成藥制備沖劑、膠囊、片劑顆?；?qū)︻w粒進行包衣。
★PGL machine is suitable for Chinese traditional medicine granule, such as capsule and tablet or coating of granule.
設備特點 Features of equipment
★多流體霧化器，更適用于多糖成分，粘稠性強或熱敏性的產品。
★噴霧干燥室、捕集室、流化床及二次供風系統等結構進行了重要的修改后，更加貼切的表現出噴霧干燥的特性。
★按照“GMP”要求進行設計、制造及布局。
★實現連續的浸膏噴霧過程。
★操作簡便、可靠
★提高噴霧干燥效率。
★比FL型流化更為穩定，提高了流化干燥強度，克服了“死床”現象。
★Multi-fluid atomizer. Particularly it is suitable for material that contains component of amylase and has strong viscosity or theral sensitive product.
★The structure of spraying drying chamber, filtering chamber, fluid-bed and secondary air supply system has been improved greatly. It can appear the features of spraying drying deeply.
★Designed and manufactured laid out by GMP
★Can realize continuous spraying process of immersed paste.
★Simple and reliable operation
★Improve spraying and drying efficiency
★Compared with FL, the fluid-bed is more constant and the adjusted air amount is more reasonable. The drying degree is improved and the “dead bed” is overcomed.
|
項目 ltem 規格 Specification |
3 |
5 |
10 |
20 |
30 |
40 |
80 |
120 |
150 |
||
|
原料容器容積 Container volume |
L |
26 |
50 |
100 |
220 |
300 |
420 |
670 |
1000 |
1500 |
|
|
供液量 Liquid speed |
kg/h |
2-4 |
4-6 |
6-15 |
15-25 |
20-40 |
30-60 |
60-100 |
20-160 |
100-200 |
|
|
液體比重 Specific gravity of liquid |
kg/L |
≤1.3 |
|||||||||
|
蒸汽 Steam |
壓強 Pressure |
Mpa |
0.4-0.6 |
||||||||
|
耗量 Consumption |
Kg/h |
25 |
50 |
120 |
160 |
240 |
280 |
300 |
380 |
465 |
|
|
壓縮空氣 Compressed air |
壓強 Pressure |
Mpa |
0.6 |
||||||||
|
耗量 Consumption |
m3/min |
0.4 |
0.6 |
0.9 |
0.9 |
1.1 |
1.1 |
1.3 |
1.6 |
1.8 |
|
|
輔助鼓風機功率 Auxiliary blower fan |
Kw |
0.55 |
0.75 |
0.75 |
1.1 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
|
|
引風機功率 Power |
Kw |
3 |
4 |
7.5 |
11 |
18.5 |
18.5 |
22 |
30 |
37 |
|
|

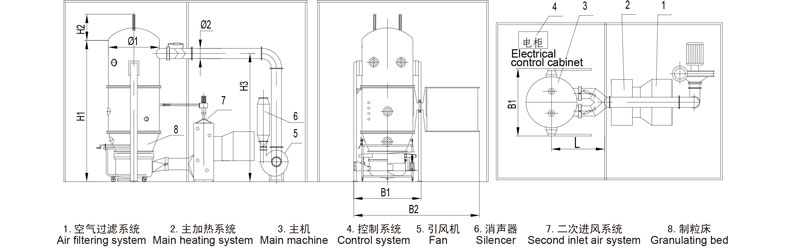

主機尺寸 Installation size for reference |
H1(mm) |
1900 |
2360 |
2680 |
3150 |
3630 |
3630 |
4120 |
5050 |
5400 |
|
|
H2(mm) |
190 |
260 |
340 |
490 |
540 |
590 |
690 |
890 |
990 |
||
|
H3(mm) |
1680 |
2140 |
2460 |
2930 |
3410 |
3410 |
3900 |
4830 |
5180 |
||
|
Ø1(mm) |
400 |
550 |
700 |
1000 |
1100 |
1200 |
1400 |
1800 |
2000 |
||
|
Ø2(mm) |
150 |
180 |
180 |
250 |
280 |
280 |
315 |
355 |
355 |
||
|
B(mm) |
860 |
1010 |
1160 |
1460 |
1560 |
1660 |
1860 |
2260 |
2460 |
||
|
L(mm) |
1050 |
1050 |
1250 |
1400 |
1450 |
1500 |
1600 |
1800 |
2000 |
||
