當前位置：首頁 > 產品中心 > 制粒設備
制粒設備
LDP流化床包衣機
簡介：流化床包衣機是將流態化包衣技術與噴霧技術有機結合為一體的新型微粒包衣設備 , 廣泛用于膜緩控釋、骨架緩控釋膠囊、丸劑包衣、顆粒、粉體包衣。
詳細說明
★流化床包衣機是將流態化包衣技術與噴霧技術有機結合為一體的新型微粒包衣設備 , 廣泛用于膜緩控釋、骨架緩控釋膠囊、丸劑包衣、顆粒、粉體包衣。
★Fluid-bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is widely used for film slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.
設備特點 Features of equipment
★底噴流態化，物料具備一定規律的運行軌跡,因而可獲得均勻、連續的衣膜。
★粉體、顆粒、丸掩味、防潮、防氧化、防水、防熱、著色隔離等包衣。
★無包衣材料損失、生產成本低。
★霧粒到達物料線路短，無“噴霧干燥”之患。
★圓柱形加速容器或倒錐體減速設計,可進行微粒、大顆粒、小顆粒、微丸包衣。
★物料分散性極好，無粘連現象。
★Coating of bottom spraying, material flow in order. We can get uniform and continuous film.
★Taste masking odor, moisture-proof, antioxidation, prevent water, heat insulation, coloration and separation coating.
★L(fēng)ow productive cost, and the coating material is used perfectly.
★Short travel distance of fog granule and without the problem of “spray drying”.
★The design of cylinder for accelerator or cone for decelerate can be used for coating of granule, powder and pellets.
★The high separate, without adhere.
|
項目 ltem 規格 Specification |
5 |
15 |
30 |
60 |
120 |
200 |
300-800 | ||
|
投料量 Capacity |
kg/批 kg/batch |
4-6 |
10-20 |
25-40 |
40-80 |
80-150 |
150-250 |
按用戶要求設計 By client |
|
|
原料容器容量 Container volume |
L |
15 |
50 |
100 |
220 |
360 |
650 |
||
|
風機功率 Power of fan |
Kw |
4 |
5.5 |
7.5 |
15 |
18.5 |
22 |
||
|
壓縮空氣 Compressed air |
壓強 Pressure |
Mpa |
0.6 |
||||||
|
耗量 Consumption |
m3/min |
0.4 |
0.6 |
0.9 |
1.3 |
1.8 |
2.4 |
||
|
蒸汽 Steam |
壓強 Pressure |
Mpa |
0.4-0.6 |
||||||
|
耗量 Consumption |
Kg/h |
9Kw |
64 |
85 |
181 |
250 |
330 |
||
|

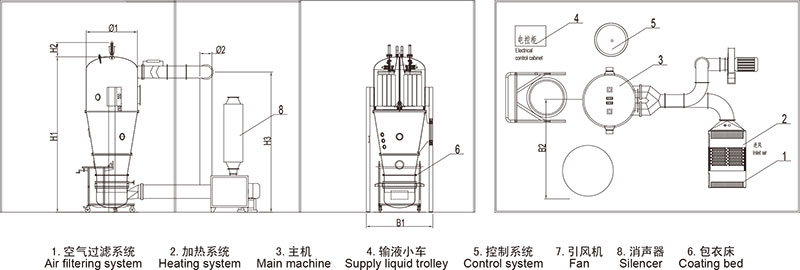

主機尺寸 Size of installation for reference |
H1(mm) |
2600 |
2850 |
3150 |
3250 |
3500 |
3800 |
||
|
H2(mm) |
|
340 |
490 |
590 |
790 |
890 |
|||
|
H3(mm) |
|
2630 |
2930 |
3020 |
3280 |
3580 |
|||
|
B1(mm) |
1010 |
1160 |
1460 |
1660 |
2060 |
2260 |
|||
|
B2(mm) |
1560 |
1860 |
2460 |
2860 |
3660 |
4060 |
|||
|
Ø1(mm) |
550 |
700 |
1000 |
1200 |
1600 |
1800 |
|||
|
Ø2(mm) |
180 |
250 |
250 |
280 |
280 |
315 |
|||
|
L(mm) |
850 |
1550 |
1700 |
1800 |
2000 |
2100 |
|||
